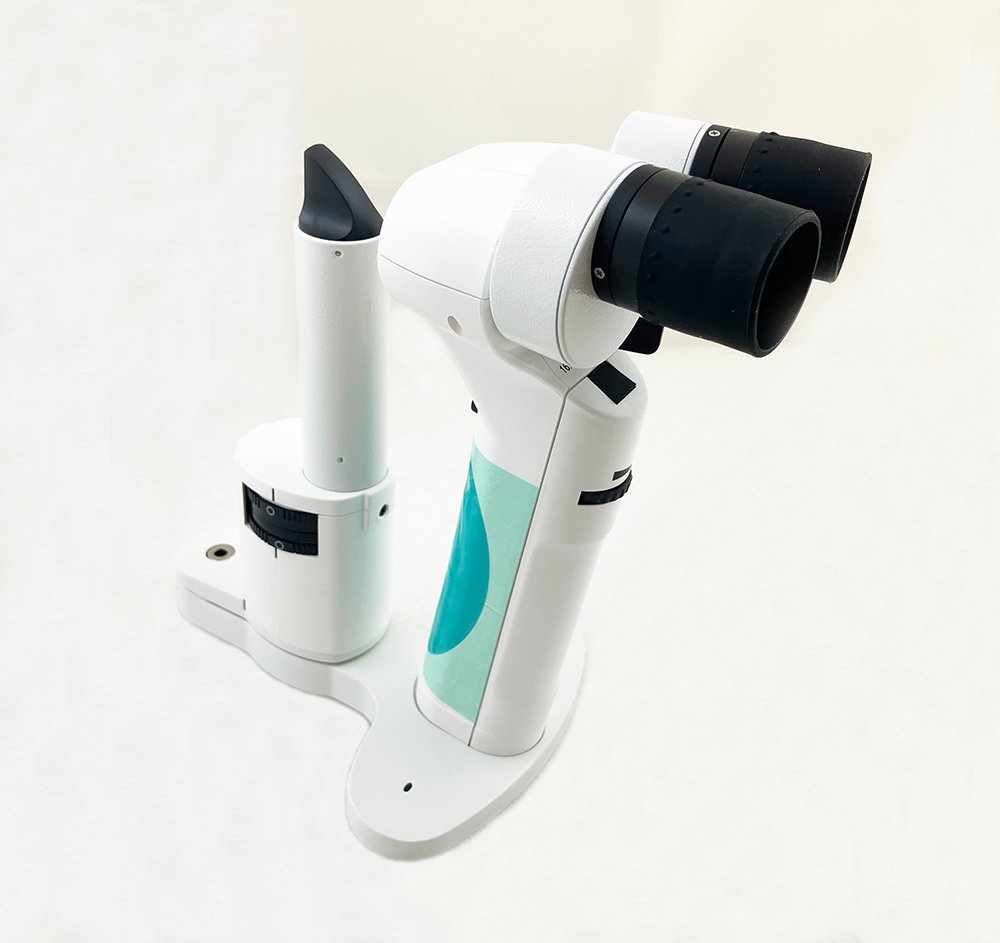

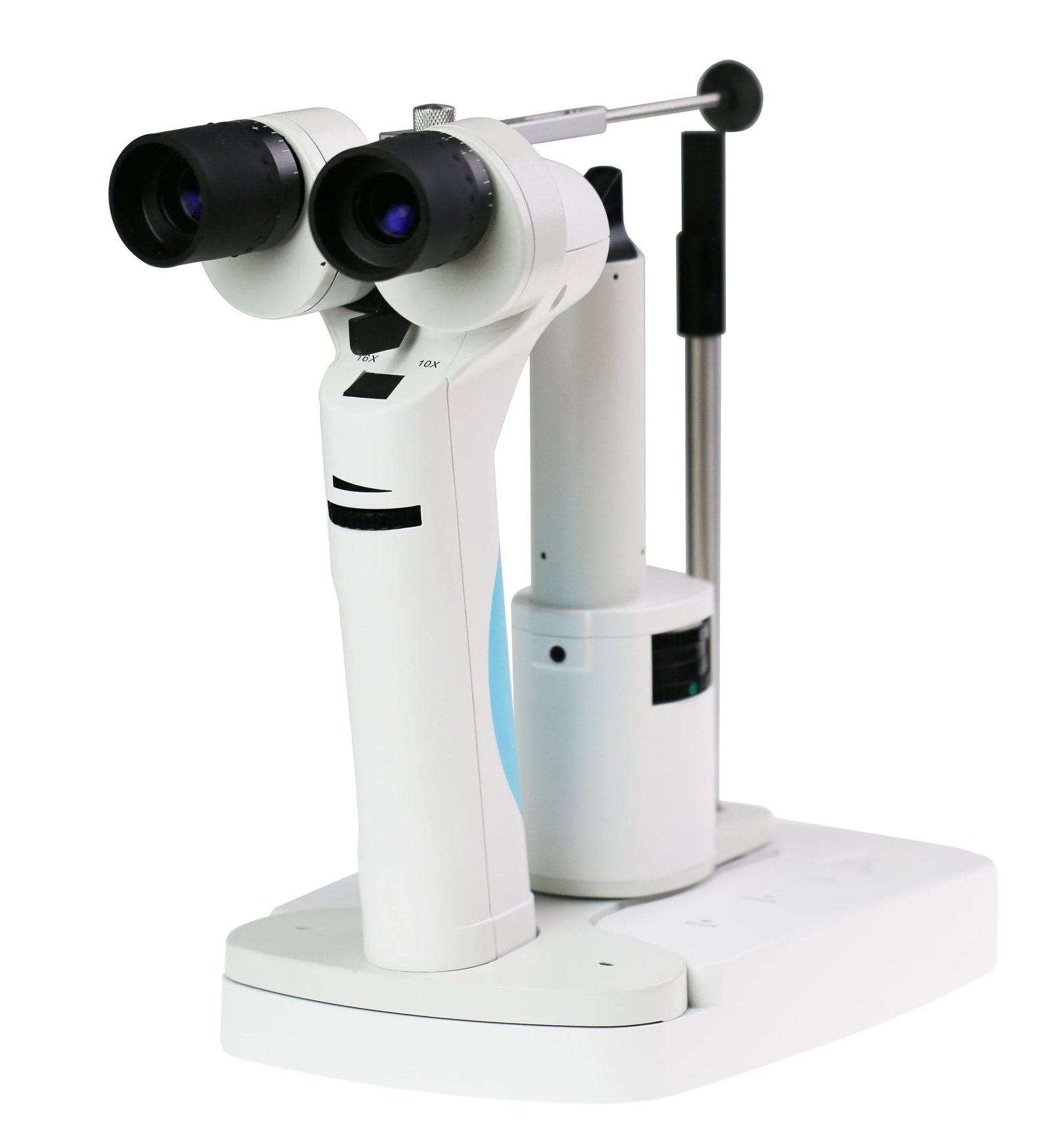

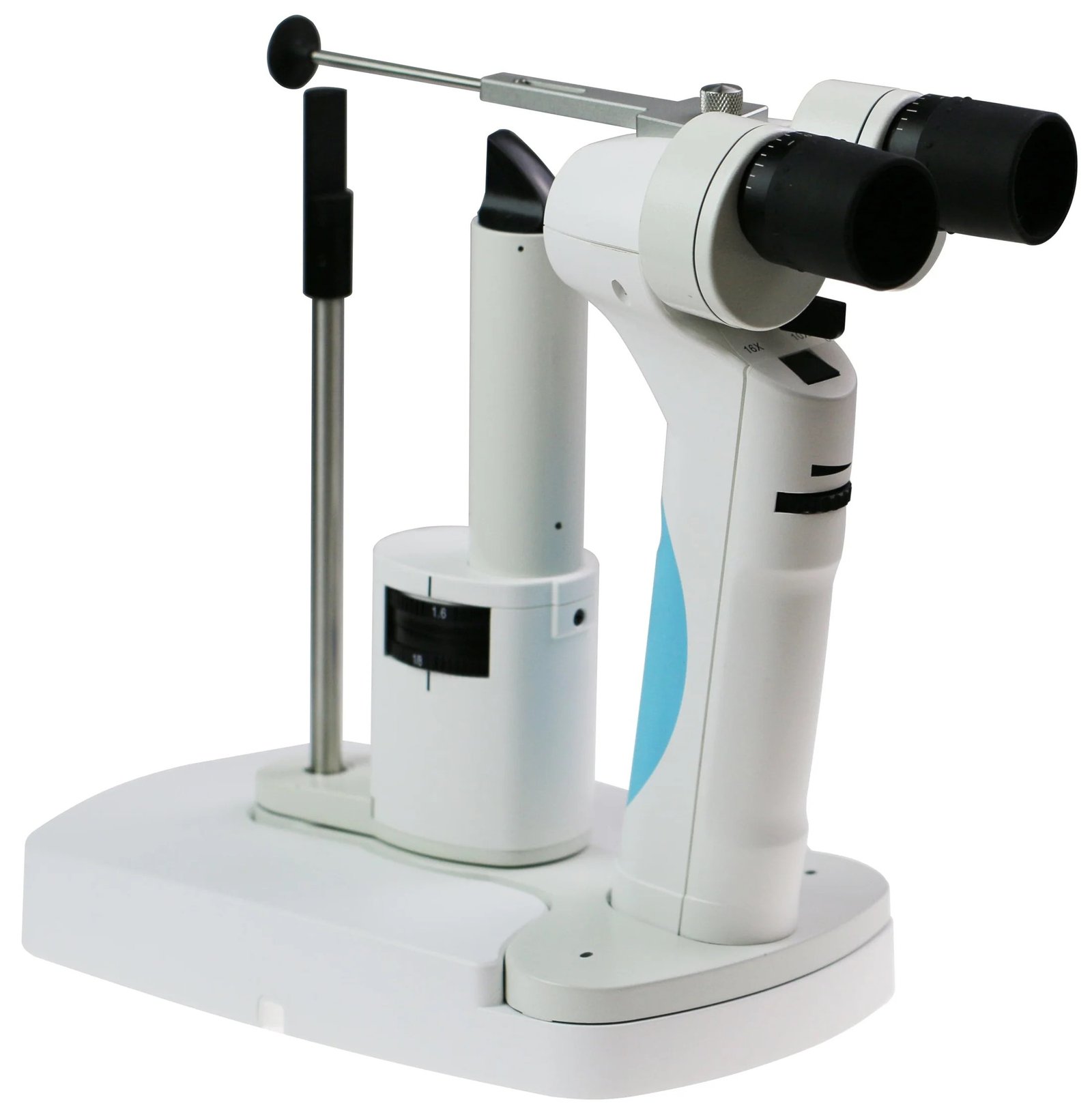

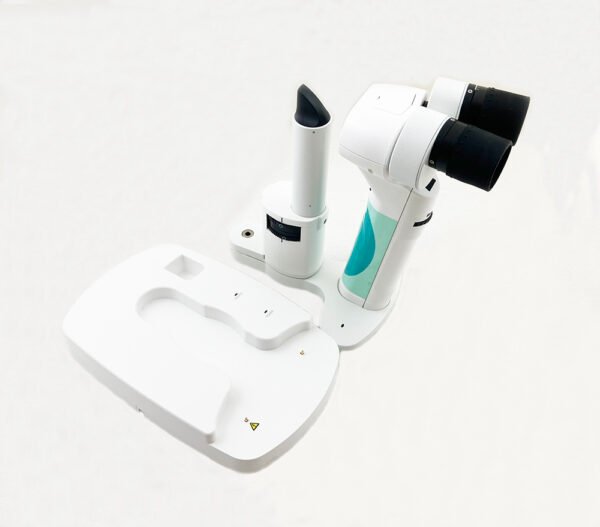

The SL19E Portable Slit Lamp is the only Handheld Slit Lamp intended for use in eye examination of the anterior eye segment, from the cornea epithelium to the posterior capsule. It is used to aid in the diagnosis of diseases or trauma that affect the structural properties of the anterior eye segment.
The SL19E Portable Slit Lamp is the only Handheld Slit Lamp intended for use in eye examination of the anterior eye segment, from the cornea epithelium to the posterior capsule.
It is used to aid in the diagnosis of diseases or trauma that affect the structural properties of the anterior eye segment.

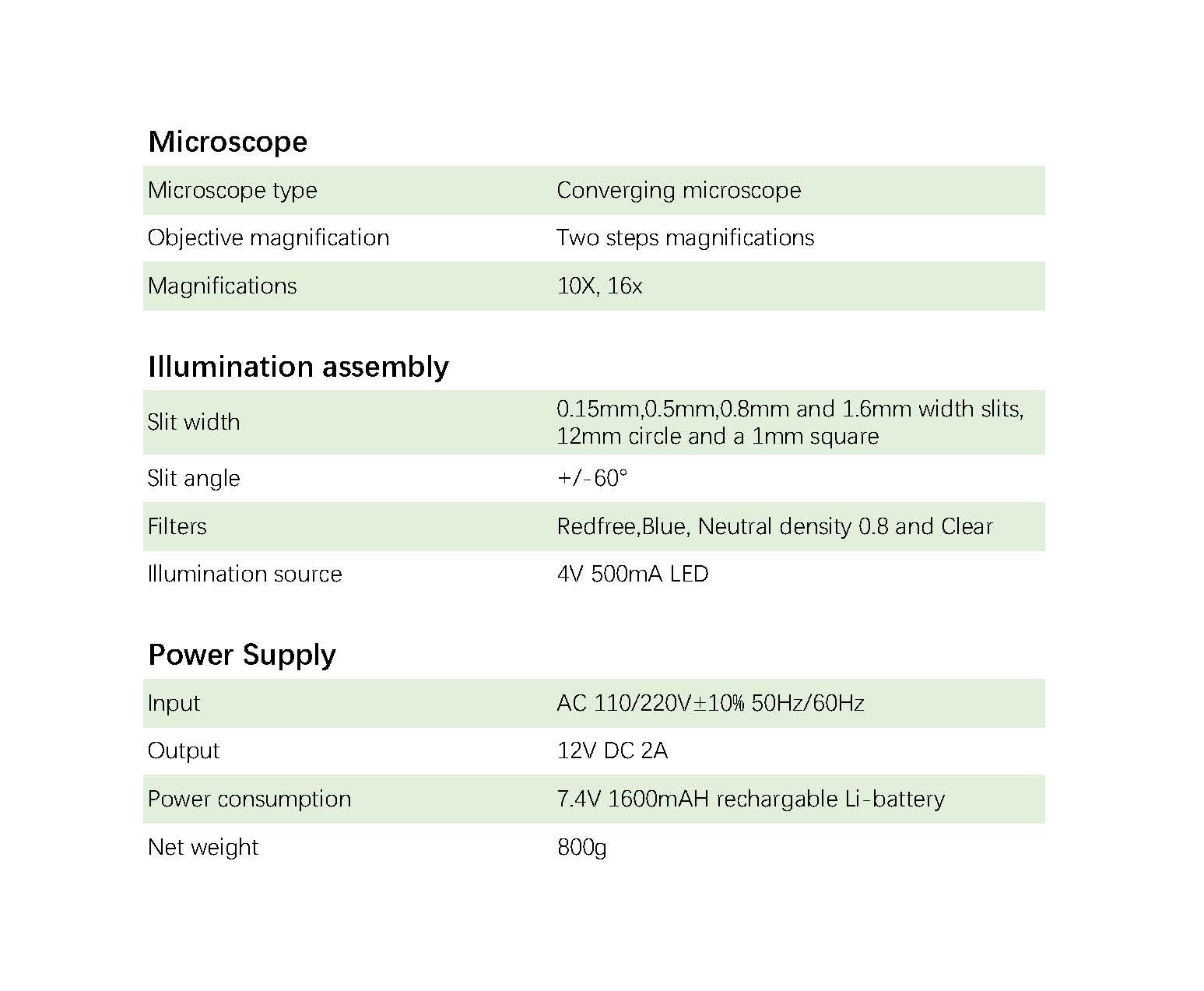

Microscope | |
Microscope type | Converging microscope |
Objective magnification | Two-step magnifications |
Magnifications | 10X, 16x |
Illumination assembly | |
Slit width | 0.15mm,0.5mm,0.8mm and 1.6mm width slits, 12mm circle and a 1mm square |
Slit angle | +/-60° |
Filters | Redfree, Blue, Neutral density 0.8 and Clear |
Illumination source | 4V 500mA LED |
Power Supply | |
Input | AC 110/220V±10% 50Hz/60Hz |
Output | 12V DC 2A |
Power consumption | 7.4V 1600mAh rechargeable Li-battery |
Net weight | 800g |
