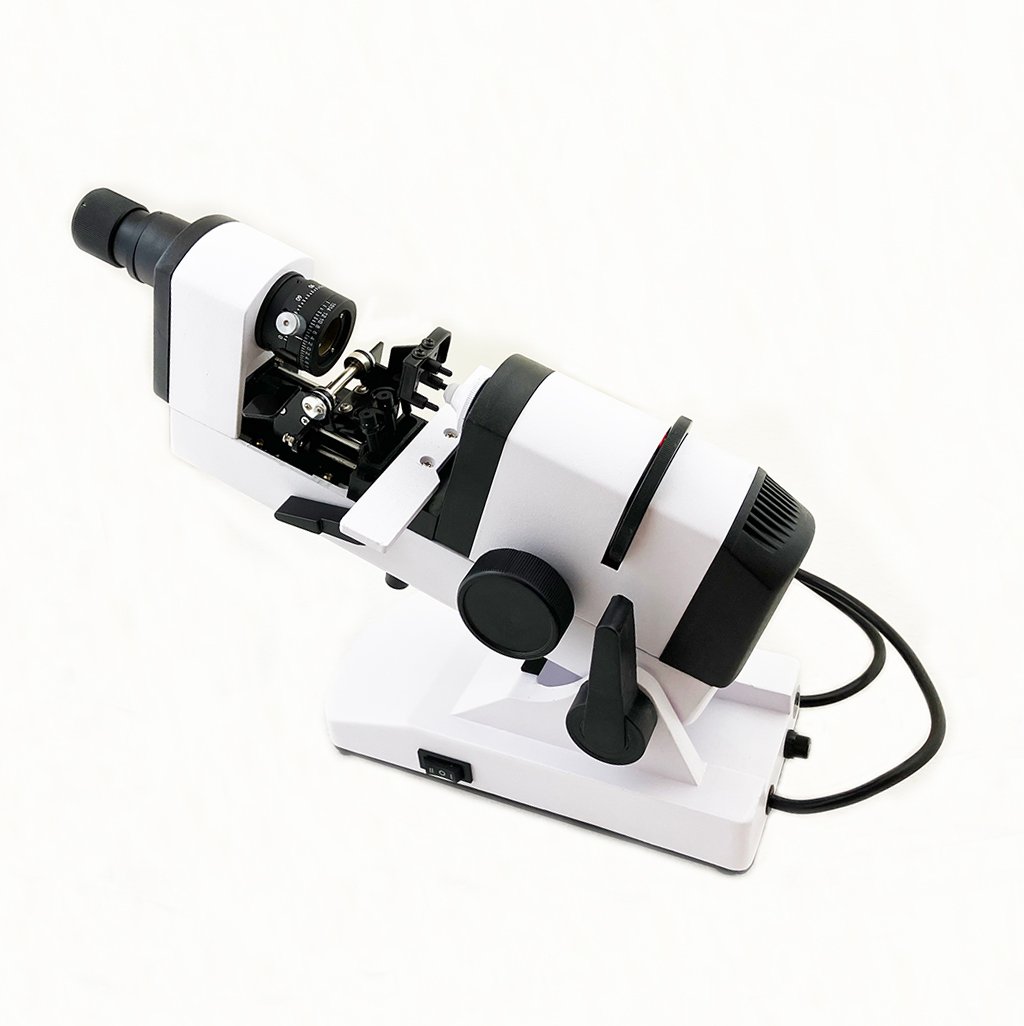

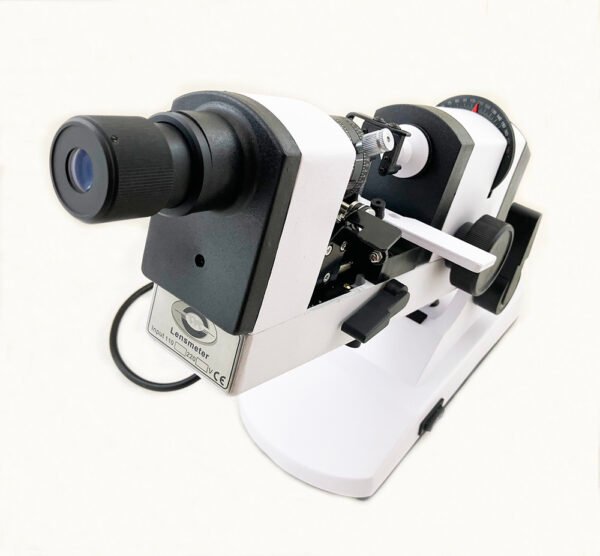

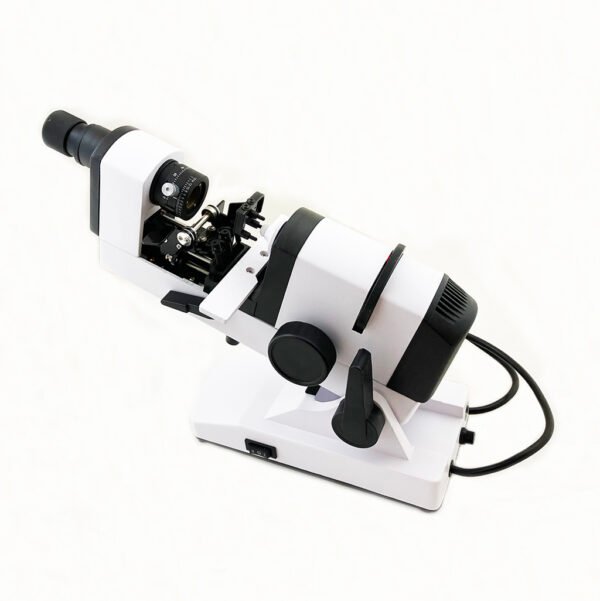

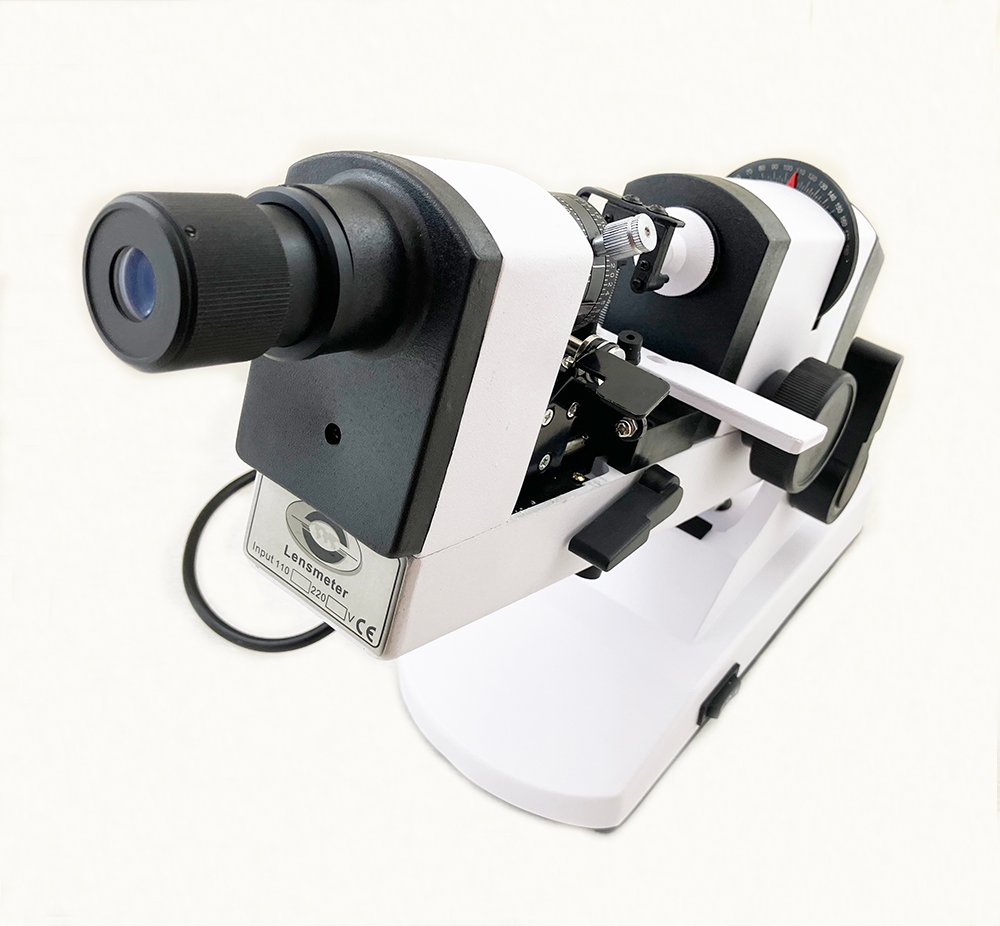

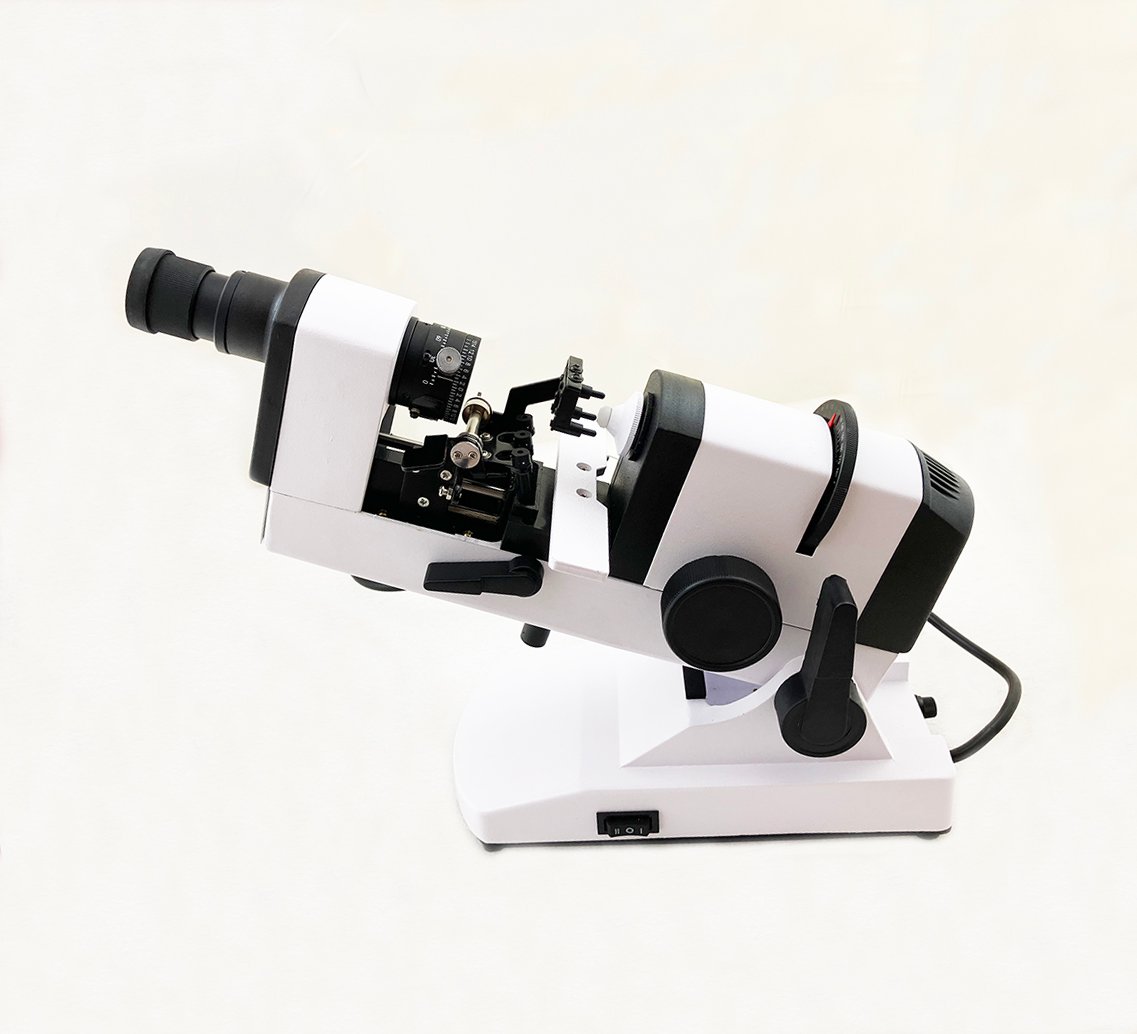

Manual Lensmeter GJD-2

Technique Parameters :

1.) Ranges of Measurement: 0 to +25D
Minimum Ourter Reading :0.125D
Minimum Inner Reading: 0.125D graduation up 0 to +5D, and 0.25D graduation over+ 5D to +25D

2) Cylinder Axis Range: : 0~180degree step 1 degree

3) Primatic Power Range : 0~5△ prism diopters, 1△ graduations

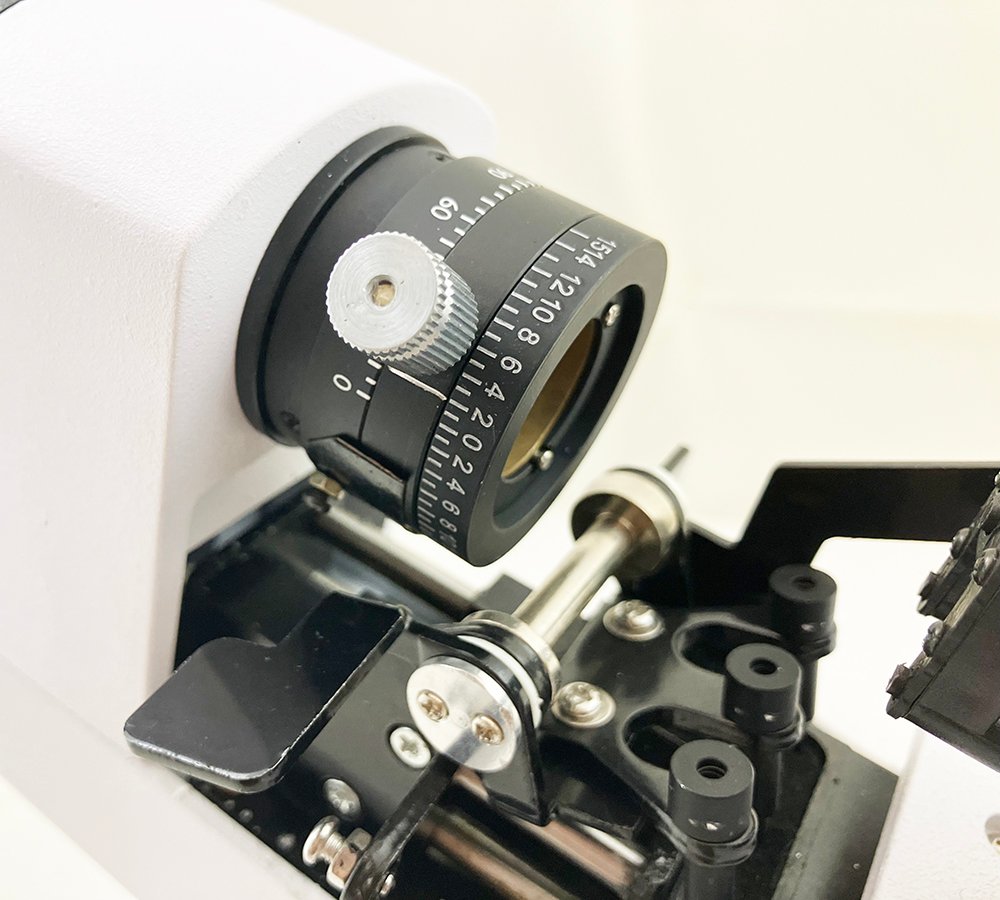

with Prism compensation device 0-20△ prism diopters, 1△ graduations

4) Primatic Base Angle : 0~180 degree

5) Eyepiece Adiustment : +5D

6) Dimension of Objective Lens : 16~86mm

7) Overall Size : 275mm x 120mm x 430mm

8) Weight :4Kg

9) Ligjting Bulb : 220V/-3V 3W or 110V/-3V 3W

10)CE & FDA Certificate
